AIRVISION

Capacity : 1.5 Tr

Refrigerant : R410A

MRP : ₹ 88000

Features

Vertical Vane

Grooved Piping

Drain Pump

Failure Recall Function

Filter Check Signal

High Ceiling Mode

Long Life Filter

Self Diagnostic Function

Auto Fan Speed Mode

Low Ceiling Mode

PAM (Pulse Amplitude Modulation)

Vector Wave Eco Inverter

Magnetic Flux Vector Sine Wave Drive

Demand Function (Onsite Adjustment)

Heat Caulking Fixing Method

Joing Lap DC Motor

DC Fan Motor

Auto Restart

On/Off Operation Timer

Pure White

Horizontal Vane

Technical Specifications

Type (Cooling)
Indoor Unit
PEY-SP18JA
Outdoor Unit
SUY-SA18VA

Performance Parameters
Capacity (Tr)	1.5 Tr
Indoor Unit (Power supply)	1ph 220-240V 50Hz
Outdoor Unit (Power supply)	1ph 220-240V 50Hz
Cooling Capacity (Min-Max)	5.3(2.8-5.3)kW
Total Input	1.72kW
EER(W/W)	3.08
Airflow(CFM)(low/mid/high)-Indoor	425/510/600
Airflow(CFM)-Outdoor	953
Guaranteed Operating Range Upper Limit(DB)	52
Guaranteed Operating Range Lower Limit(DB)	18

Compressor, Refrigerant & Ambient Operations
Noise Level Indoor (low/mid/high) In dB(A)	30/35/39
Noise Level Outdoor In dB(A)	47
Refrigerant	R410A

Dimensions & Weight
Indoor unit	Dimensions (H x W x D)	mm	250x900x732
Indoor unit	Weight	kg	27
Outdoor unit	Dimensions (H x W x D)	mm	550x800x285
Outdoor unit	Weight	kg	32
Ext.Piping	Diameter Liquid	mm (inches)	6.35
	Diameter Gas	mm (inches)	12.7
	Max. piping length	m	20
	Max. height difference	m	12

Capacity : 2 Tr

Refrigerant : R410A

MRP : ₹ 96800

Features

Vertical Vane

Grooved Piping

Drain Pump

Failure Recall Function

Filter Check Signal

High Ceiling Mode

Long Life Filter

Self Diagnostic Function

Auto Fan Speed Mode

Low Ceiling Mode

PAM (Pulse Amplitude Modulation)

Vector Wave Eco Inverter

Magnetic Flux Vector Sine Wave Drive

Demand Function (Onsite Adjustment)

Heat Caulking Fixing Method

Joing Lap DC Motor

DC Fan Motor

Auto Restart

On/Off Operation Timer

Pure White

Horizontal Vane

Technical Specifications

Type (Cooling)
Indoor Unit
PEY-SP24JA
Outdoor Unit
SUY-SA24VA

Performance Parameters
Nominal Capacity (Tr)	2 Tr
Indoor Unit (Power supply)	1ph 220-240V 50Hz
Outdoor Unit (Power supply)	1ph 220-240V 50Hz
Cooling Capacity (Min-Max)	7.1(2.9-7.1)kW
Total Input	2.16kW
EER(W/W)	3.28
Airflow(CFM)(low/mid/high)-Indoor	620/740/885
Airflow(CFM)-Outdoor	1625
Guaranteed Operating Range Upper Limit(DB)	52
Guaranteed Operating Range Lower Limit(DB)	18

Compressor, Refrigerant & Ambient Operations
Noise Level Indoor (low/mid/high) In dB(A)	30/34/39
Noise Level Outdoor In dB(A)	52
Refrigerant	R410A

Dimensions & Weight
Indoor unit	Dimensions (H x W x D)	mm	250x1100x732
Indoor unit	Weight	kg	29
Outdoor unit	Dimensions (H x W x D)	mm	880x840x330
Outdoor unit	Weight	kg	49
Ext.Piping	Diameter Liquid	mm (inches)	9.52
	Diameter Gas	mm (inches)	15.88
	Max. piping length	m	30
	Max. height difference	m	15

Capacity : 2.5 Tr

Refrigerant : R410A

MRP : ₹ 114100

Features

Vertical Vane

Grooved Piping

Drain Pump

Failure Recall Function

Filter Check Signal

High Ceiling Mode

Long Life Filter

Self Diagnostic Function

Auto Fan Speed Mode

Low Ceiling Mode

PAM (Pulse Amplitude Modulation)

Vector Wave Eco Inverter

Magnetic Flux Vector Sine Wave Drive

Demand Function (Onsite Adjustment)

Heat Caulking Fixing Method

Joing Lap DC Motor

DC Fan Motor

Auto Restart

On/Off Operation Timer

Pure White

Horizontal Vane

Technical Specifications

Type (Cooling)
Indoor Unit
PEY-SP30JA
Outdoor Unit
SUY-SA30VA

Performance Parameters
Nominal Capacity (Tr)	2.5 Tr
Indoor Unit (Power supply)	1ph 220-240V 50Hz
Outdoor Unit (Power supply)	1ph 220-240V 50Hz
Cooling Capacity (Min-Max)	8.8(3.8-8.8)kW
Total Input	2.50kW
EER(W/W)	3.52
Airflow(CFM)(low/mid/high)-Indoor	850/1025/1200
Airflow(CFM)-Outdoor	1800
Guaranteed Operating Range Upper Limit(DB)	52
Guaranteed Operating Range Lower Limit(DB)	18

Compressor, Refrigerant & Ambient Operations
Noise Level Indoor (low/mid/high) In dB(A)	33/38/42
Noise Level Outdoor In dB(A)	54
Refrigerant	R410A

Dimensions & Weight
Indoor unit	Dimensions (H x W x D)	mm	250x1400x732
Indoor unit	Weight	kg	38
Outdoor unit	Dimensions (H x W x D)	mm	880x840x330
Outdoor unit	Weight	kg	50
Ext.Piping	Diameter Liquid	mm (inches)	9.52
	Diameter Gas	mm (inches)	15.88
	Max. piping length	m	30
	Max. height difference	m	15

Capacity : 3 Tr

Refrigerant : R410A

MRP : ₹ 151200

Features

Vertical Vane

Grooved Piping

Drain Pump

Failure Recall Function

Filter Check Signal

High Ceiling Mode

Long Life Filter

Self Diagnostic Function

Auto Fan Speed Mode

Low Ceiling Mode

PAM (Pulse Amplitude Modulation)

Vector Wave Eco Inverter

Magnetic Flux Vector Sine Wave Drive

Demand Function (Onsite Adjustment)

Heat Caulking Fixing Method

Joing Lap DC Motor

DC Fan Motor

Auto Restart

On/Off Operation Timer

Pure White

Horizontal Vane

Technical Specifications

Type (Cooling)
Indoor Unit
PEY-SP36JA
Outdoor Unit
PUY-SP36YKA

Performance Parameters
Nominal Capacity (Tr)	3 Tr
Indoor Unit (Power supply)	1ph 220-240V 50Hz
Outdoor Unit (Power supply)	3ph 380-415V 50Hz
Cooling Capacity (Min-Max)	10.6(4.0-10.6)kW
Total Input	3.66kW
EER(W/W)	2.90
Airflow(CFM)(low/mid/high)-Indoor	1040/1225/1485
Airflow(CFM)-Outdoor	2648
Guaranteed Operating Range Upper Limit(DB)	52
Guaranteed Operating Range Lower Limit(DB)	18

Compressor, Refrigerant & Ambient Operations
Noise Level Indoor (low/mid/high) In dB(A)	36/40/44
Noise Level Outdoor In dB(A)	52
Refrigerant	R410A

Dimensions & Weight
Indoor unit	Dimensions (H x W x D)	mm	250x1400x732
Indoor unit	Weight	kg	39
Outdoor unit	Dimensions (H x W x D)	mm	981x1050x330
Outdoor unit	Weight	kg	65
Ext.Piping	Diameter Liquid	mm (inches)	9.52
	Diameter Gas	mm (inches)	15.88
	Max. piping length	m	30
	Max. height difference	m	15

Capacity : 3.5 Tr

Refrigerant : R410A

MRP : ₹ 192000

Features

Vertical Vane

Grooved Piping

Drain Pump

Failure Recall Function

Filter Check Signal

High Ceiling Mode

Long Life Filter

Self Diagnostic Function

Auto Fan Speed Mode

Low Ceiling Mode

PAM (Pulse Amplitude Modulation)

Vector Wave Eco Inverter

Magnetic Flux Vector Sine Wave Drive

Demand Function (Onsite Adjustment)

Heat Caulking Fixing Method

Joing Lap DC Motor

DC Fan Motor

Auto Restart

On/Off Operation Timer

Pure White

Horizontal Vane

Technical Specifications

Type (Cooling)
Indoor Unit
PEY-SP42JA
Outdoor Unit
PUY-SP42YKA

Performance Parameters
Nominal Capacity (Tr)	3.5 Tr
Indoor Unit (Power supply)	1ph 220-240V 50Hz
Outdoor Unit (Power supply)	3ph 380-415V 50Hz
Cooling Capacity (Min-Max)	12.3(6.1-12.3)kW
Total Input	4.59kW
EER(W/W)	2.67
Airflow(CFM)(low/mid/high)-Indoor	1040/1225/1485
Airflow(CFM)-Outdoor	2648
Guaranteed Operating Range Upper Limit(DB)	52
Guaranteed Operating Range Lower Limit(DB)	18

Compressor, Refrigerant & Ambient Operations
Noise Level Indoor (low/mid/high) In dB(A)	36/40/44
Noise Level Outdoor In dB(A)	53
Refrigerant	R410A

Dimensions & Weight
Indoor unit	Dimensions (H x W x D)	mm	250x1400x732
Indoor unit	Weight	kg	39
Outdoor unit	Dimensions (H x W x D)	mm	981x1050x330
Outdoor unit	Weight	kg	73
Ext.Piping	Diameter Liquid	mm (inches)	9.52
	Diameter Gas	mm (inches)	15.88
	Max. piping length	m	30
	Max. height difference	m	15

Capacity : 4 Tr

Refrigerant : R410A

MRP : ₹ 209500

Features

Vertical Vane

Grooved Piping

Drain Pump

Failure Recall Function

Filter Check Signal

High Ceiling Mode

Long Life Filter

Self Diagnostic Function

Auto Fan Speed Mode

Low Ceiling Mode

PAM (Pulse Amplitude Modulation)

Vector Wave Eco Inverter

Magnetic Flux Vector Sine Wave Drive

Demand Function (Onsite Adjustment)

Heat Caulking Fixing Method

Joing Lap DC Motor

DC Fan Motor

Auto Restart

On/Off Operation Timer

Pure White

Horizontal Vane

Technical Specifications

Type (Cooling)
Indoor Unit
PEY-SP48JA
Outdoor Unit
PUY-SP48YKA

Performance Parameters
Nominal Capacity (Tr)	4 Tr
Indoor Unit (Power supply)	1ph 220-240V 50Hz
Outdoor Unit (Power supply)	3ph 380-415V 50Hz
Cooling Capacity (Min-Max)	14.1(7.0-14.1)kW
Total Input	5.73kW
EER(W/W)	2.46
Airflow(CFM)(low/mid/high)-Indoor	1040/1225/1485
Airflow(CFM)-Outdoor	3071
Guaranteed Operating Range Upper Limit(DB)	52
Guaranteed Operating Range Lower Limit(DB)	18

Compressor, Refrigerant & Ambient Operations
Noise Level Indoor (low/mid/high) In dB(A)	36/40/44
Noise Level Outdoor In dB(A)	56
Refrigerant	R410A

Dimensions & Weight
Indoor unit	Dimensions (H x W x D)	mm	250x1400x732
Indoor unit	Weight	kg	39
Outdoor unit	Dimensions (H x W x D)	mm	981x1050x330
Outdoor unit	Weight	kg	73
Ext.Piping	Diameter Liquid	mm (inches)	9.52
	Diameter Gas	mm (inches)	15.88
	Max. piping length	m	50
	Max. height difference	m	30

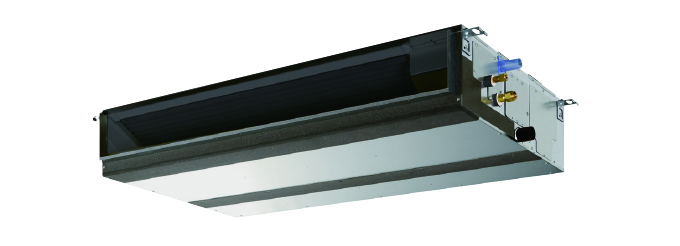

DC Inverter Ductable
